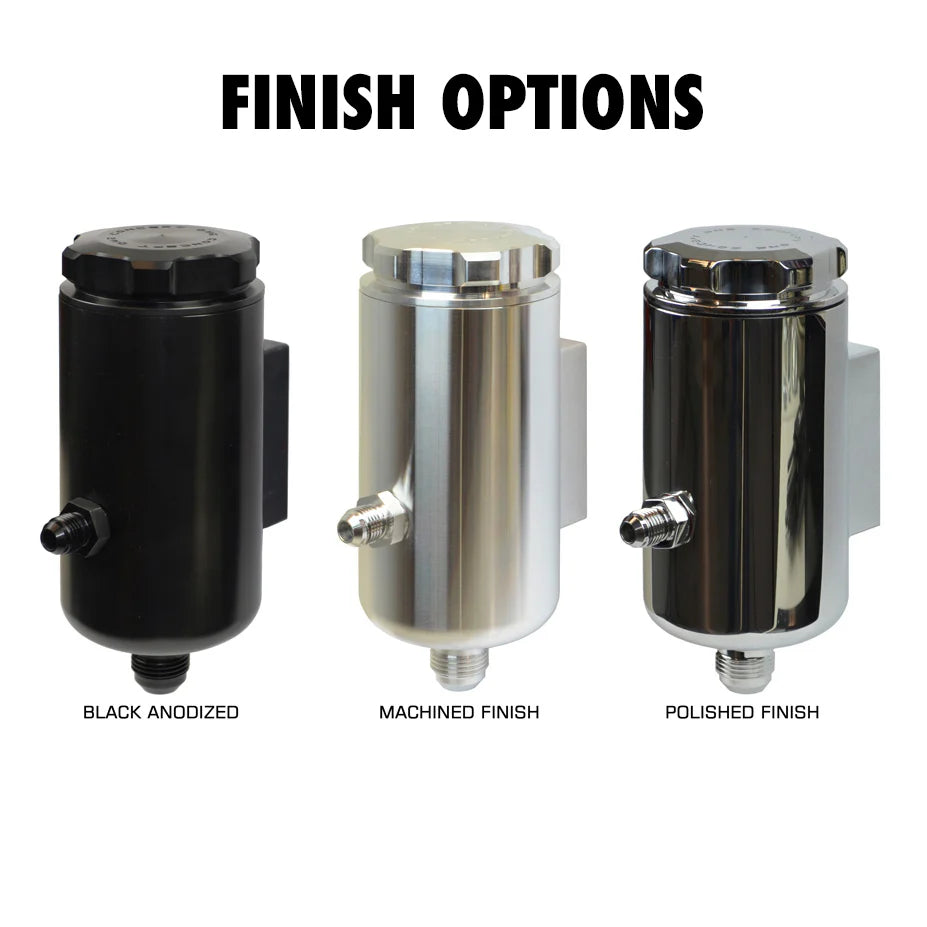

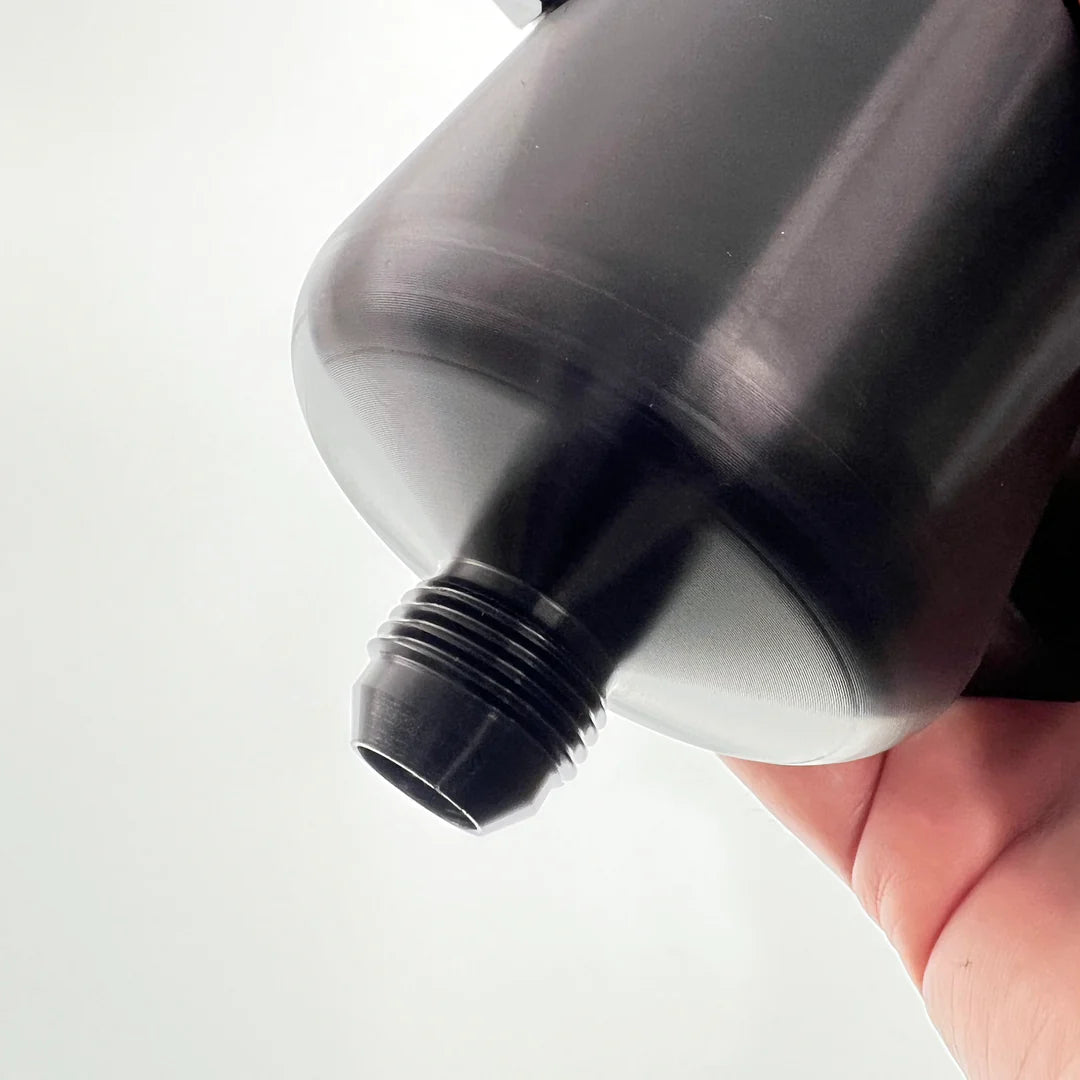

Heavy-duty power steering reservoir for vehicles equipped with hydro boost brakes assist. Dual -6AN return fittings isolate the hydro boost return from the power steering return. The main housing is carved from a single billet including the -10AN feed fitting at bottom. This solves many performance issues related to hydro boost installations. Internal baffling calms the returning fluid to eliminate aeration. This, in turn, greatly reduces noise and fluid temperature while improving steering feedback. Power steering reservoirs are available in a variety of finishes. The reservoir must be remote-mounted higher than the power steering pump. Power Steering/Hydro boost hose kits are available that connect the four critical components Reservoir return fitting: -6AN (2) Pump supply fitting: -10AN (1)

CONFIGURATION: Remote Mount. Requires power steering hose between power steering pump, hydro boost, power steering reservoir, and steering gear.

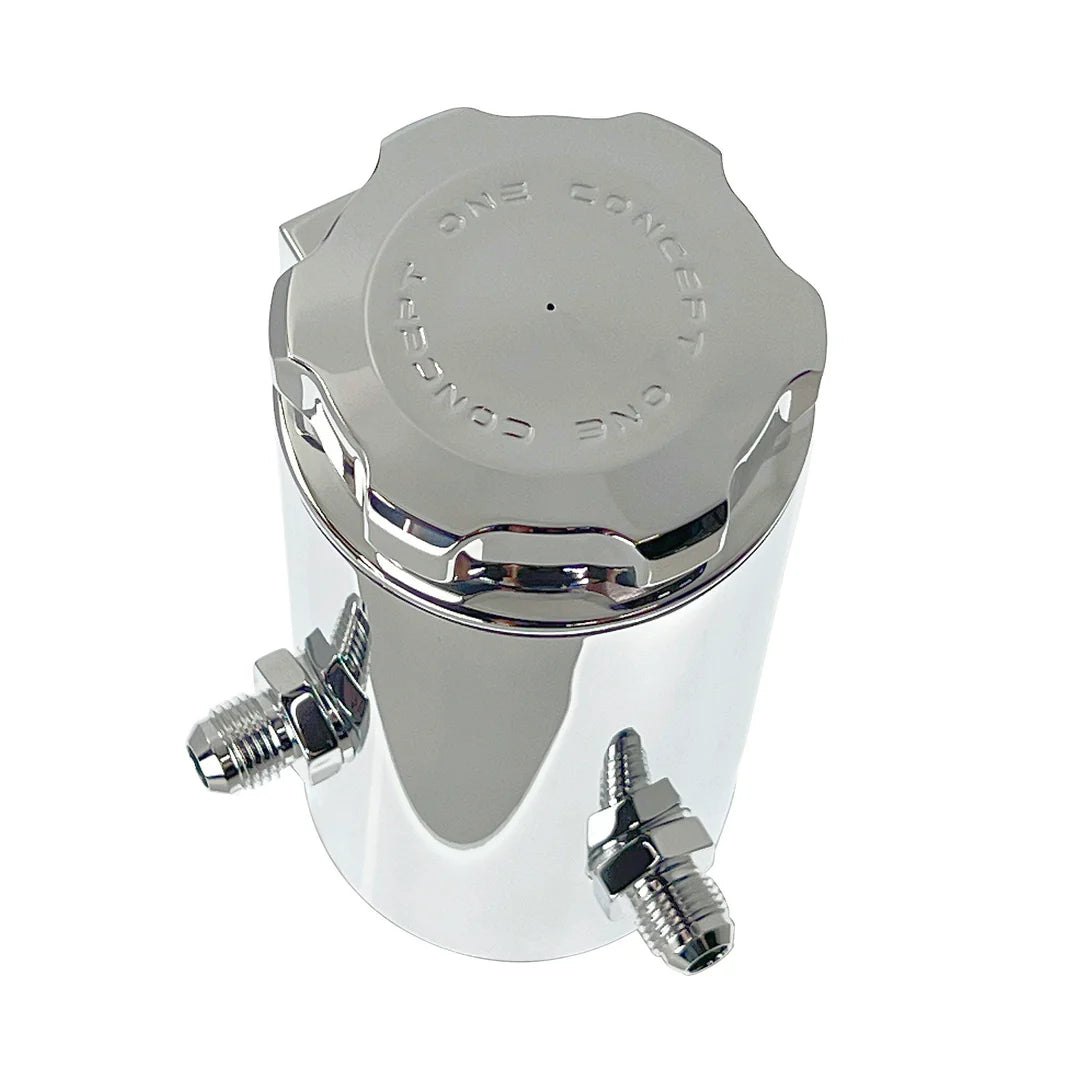

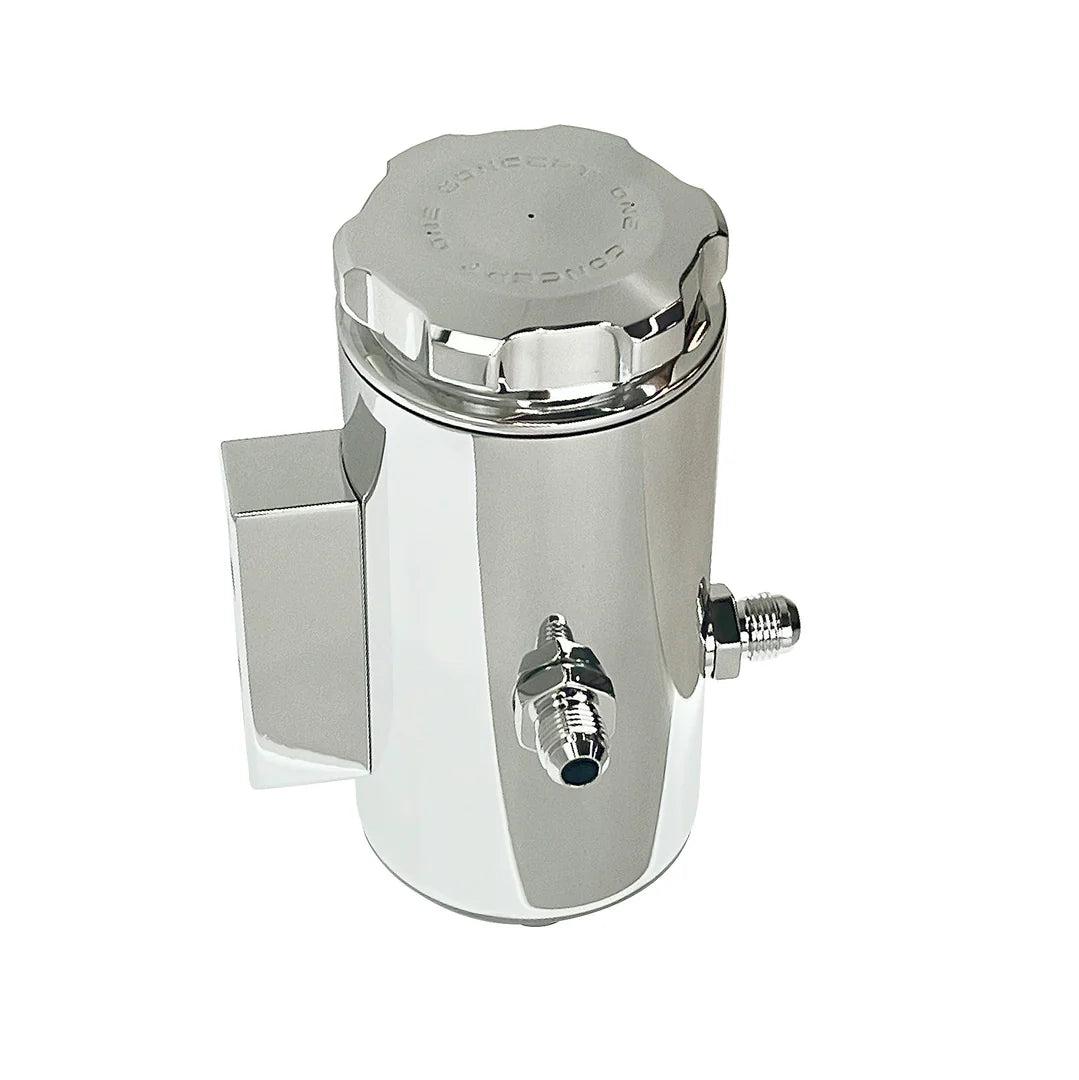

INCLUDED COMPONENTS: Billet power steering reservoir housing, -10AN feed fitting (integral), -6AN return fittings (2), Mounting block (accepts 1/4-20 hardware), billet cap (O-ring seal)

Lead Times: Machined or Polished: 1 week | Anodized: 2 weeks

All systems are made to order.
