Description:

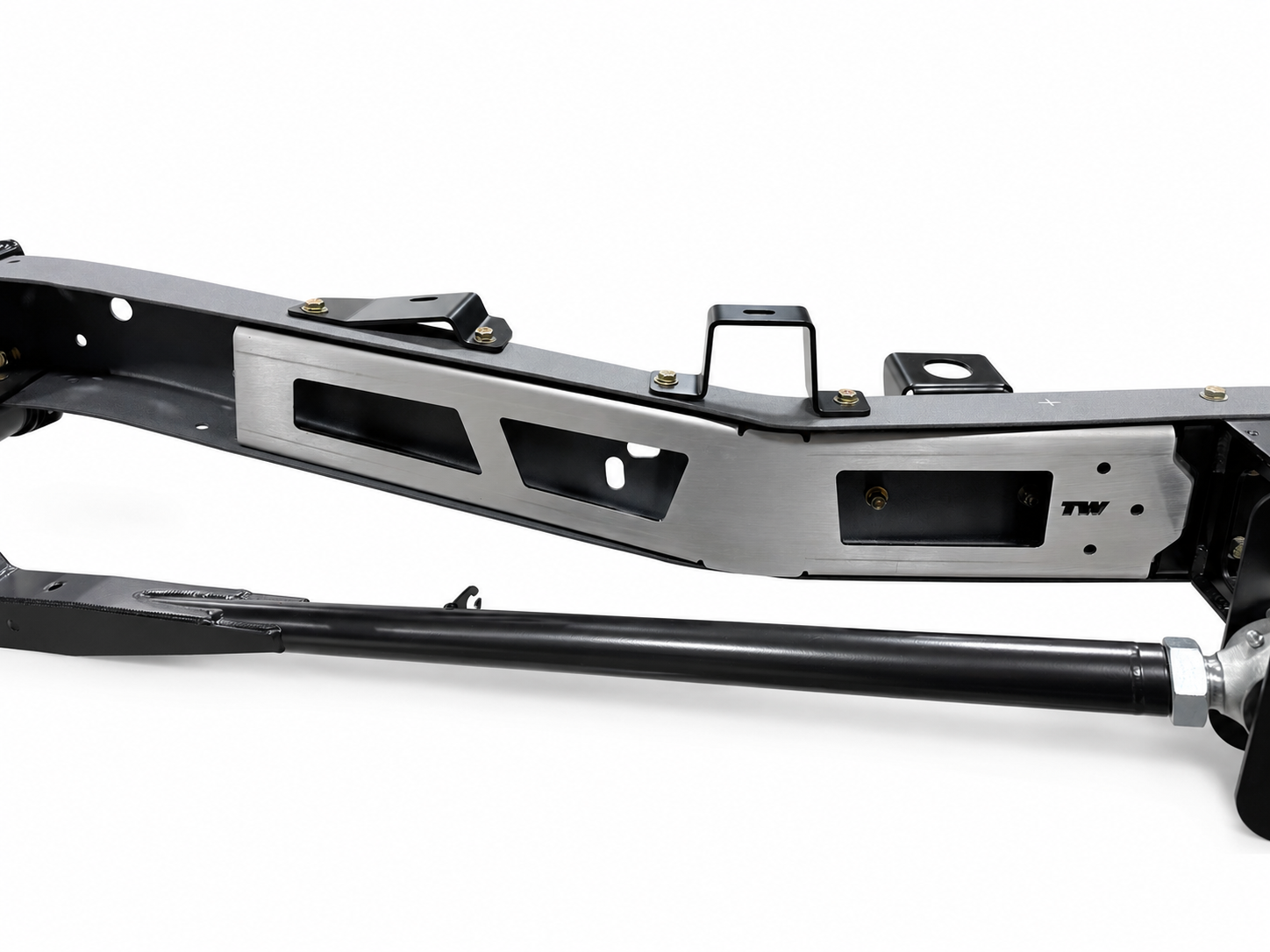

Strengthen the weakest section of your 1963-72 C10 frame with the TW Suspension Mid Frame Brace. Designed to box the open center section of the factory frame, this brace significantly increases rigidity to help reduce frame flex in high-performance, lowered, or hard-working trucks.

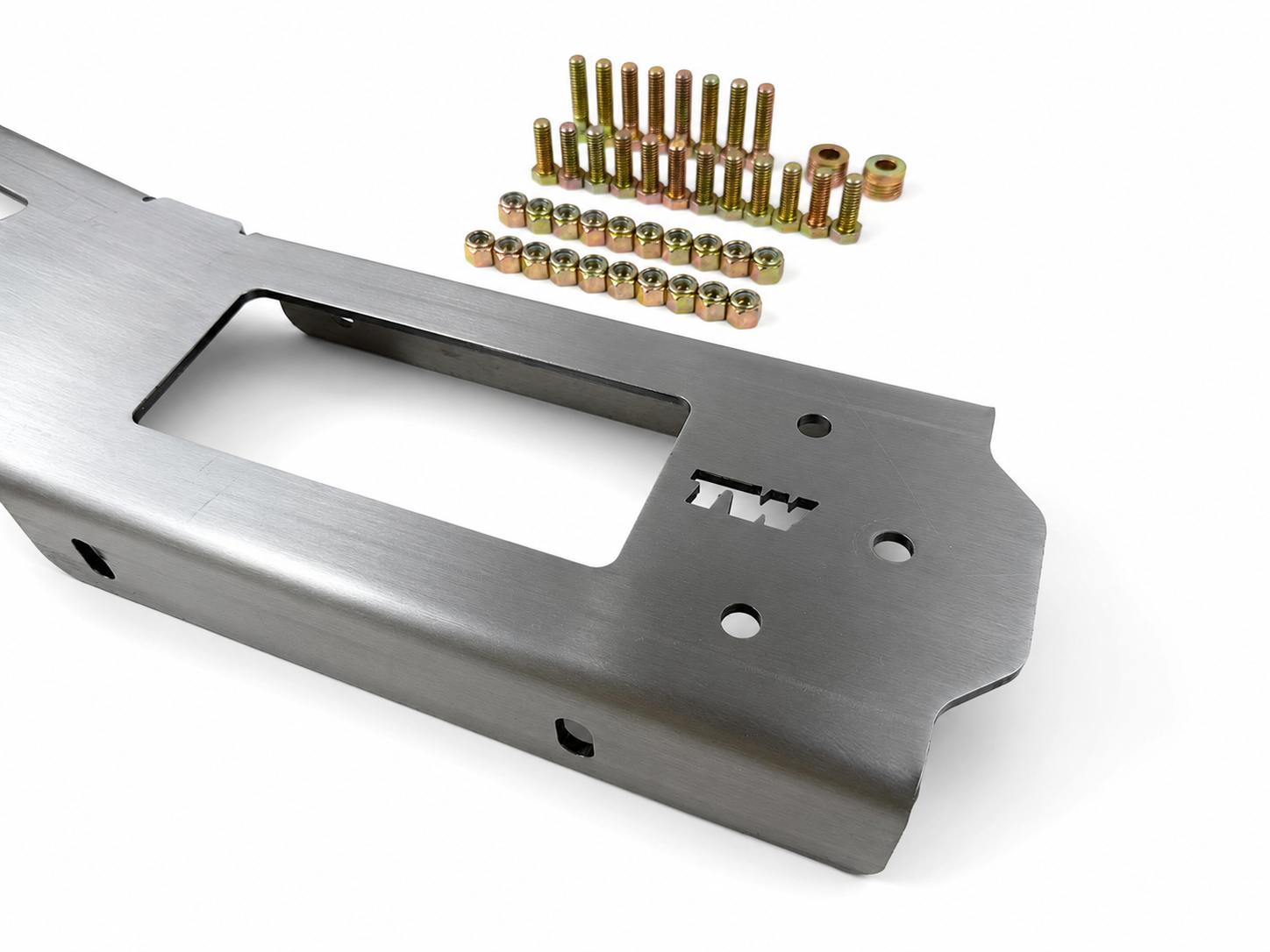

Laser cut from 3/16" steel plate, the Mid Frame Brace features a 100% bolt-in design, making installation straightforward with no welding required.

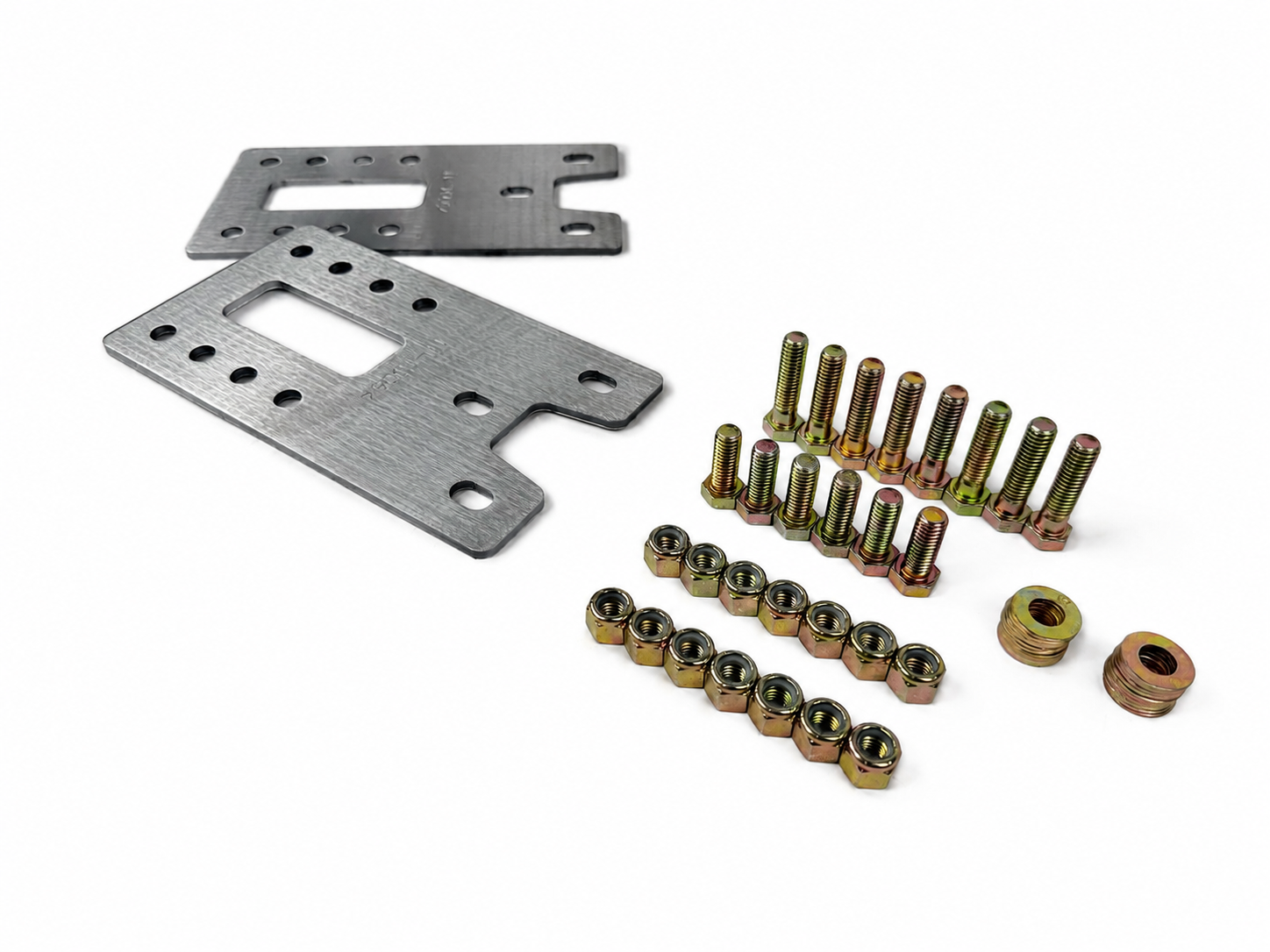

For customers running a TW Suspension Frame Stiffener or Trailing Arm Crossmember, the optional Bridge Plates are available. These plates tie the Mid Frame Brace directly into your existing Tinworks components, creating an even stronger, more rigid chassis.
Features
- 3/16 Steel Construction
- Bolts to Factory Frame Holes to Locate
- Optional Bridge Plates to Tie In Our Frame Stiffener or Trailing Arm Crossmember
Includes

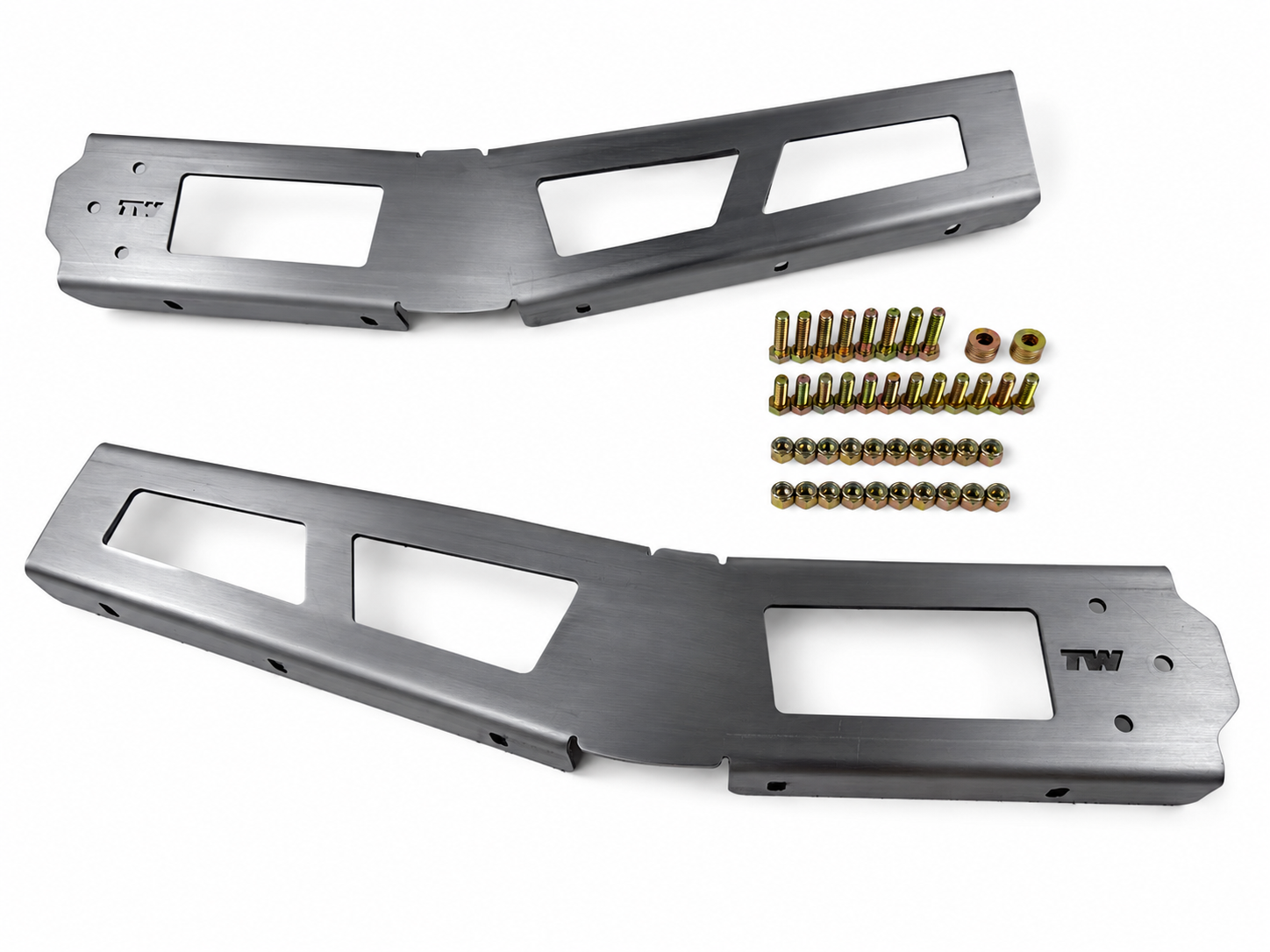

- Driver & Passenger Boxing Plates
- Grade 8 Hardware
- Optional Bridge Plates
Application
- Short & Long Bed Trucks
- 63-72 Chevy/GMC
- C10/C20
