Description:

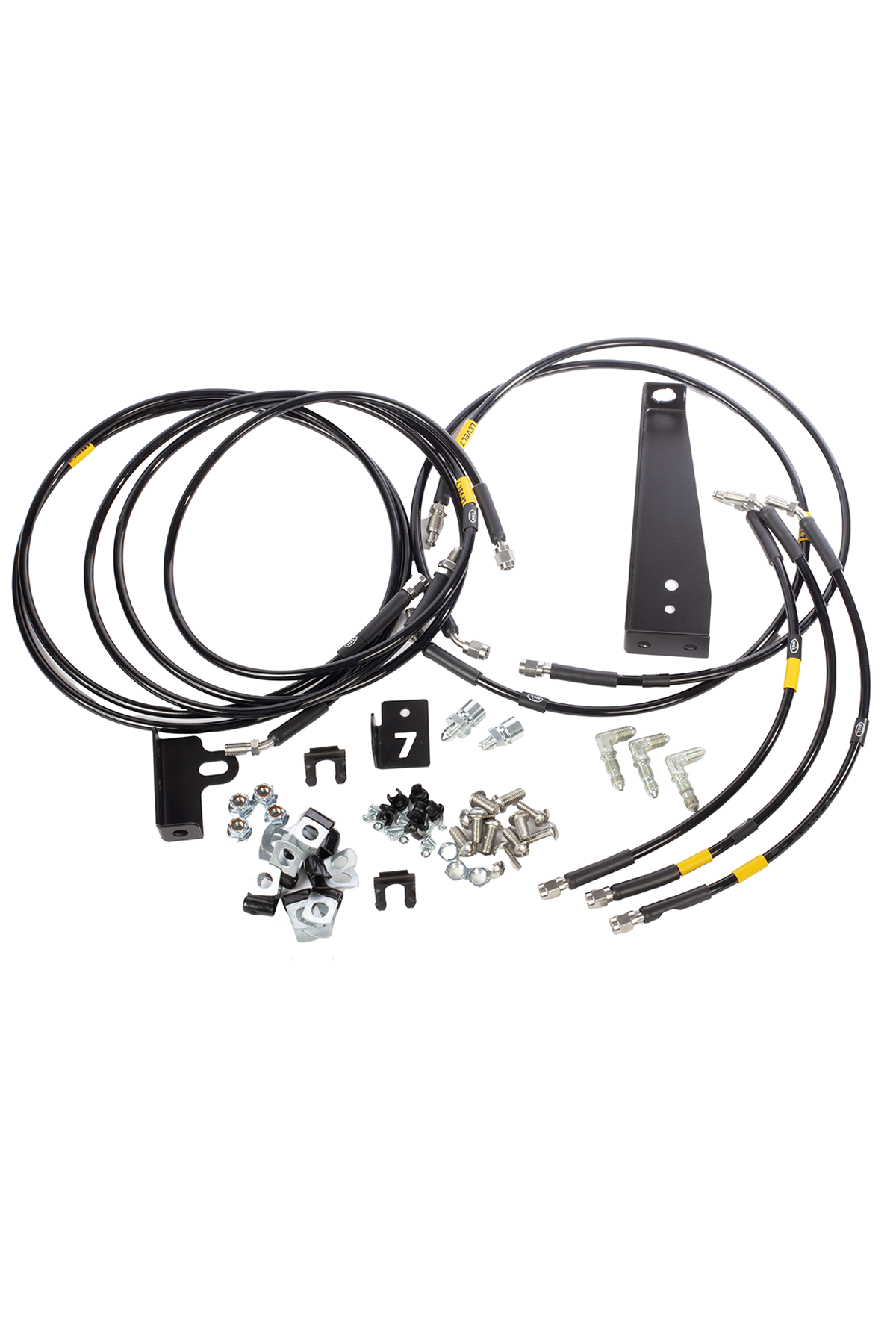

Level 7 Motorsports has developed this brake line kit specifically for the popular 1988-98 Chevy / GMC C1500 OBS Trucks. Currently only available for Short Bed / Short Cab

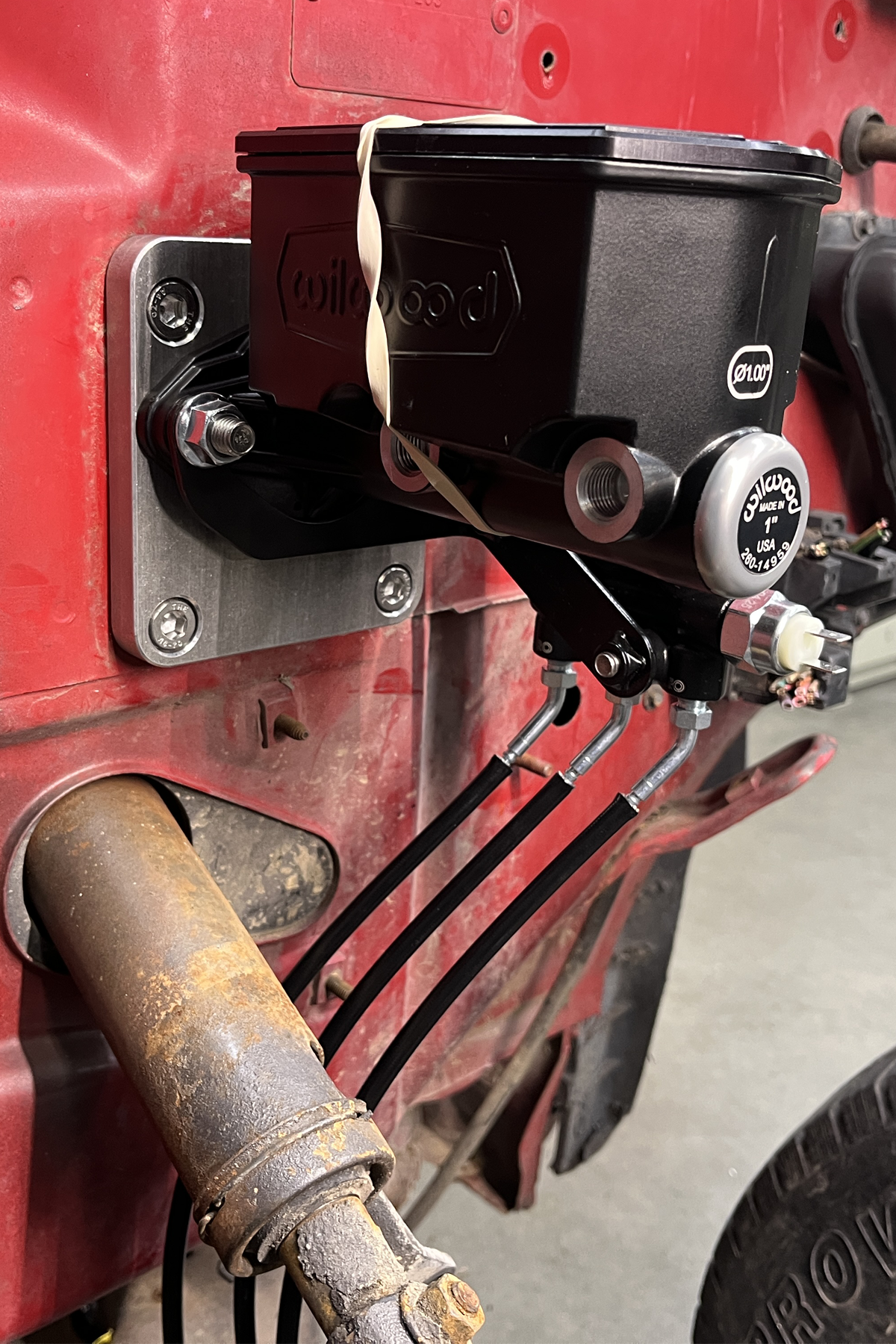

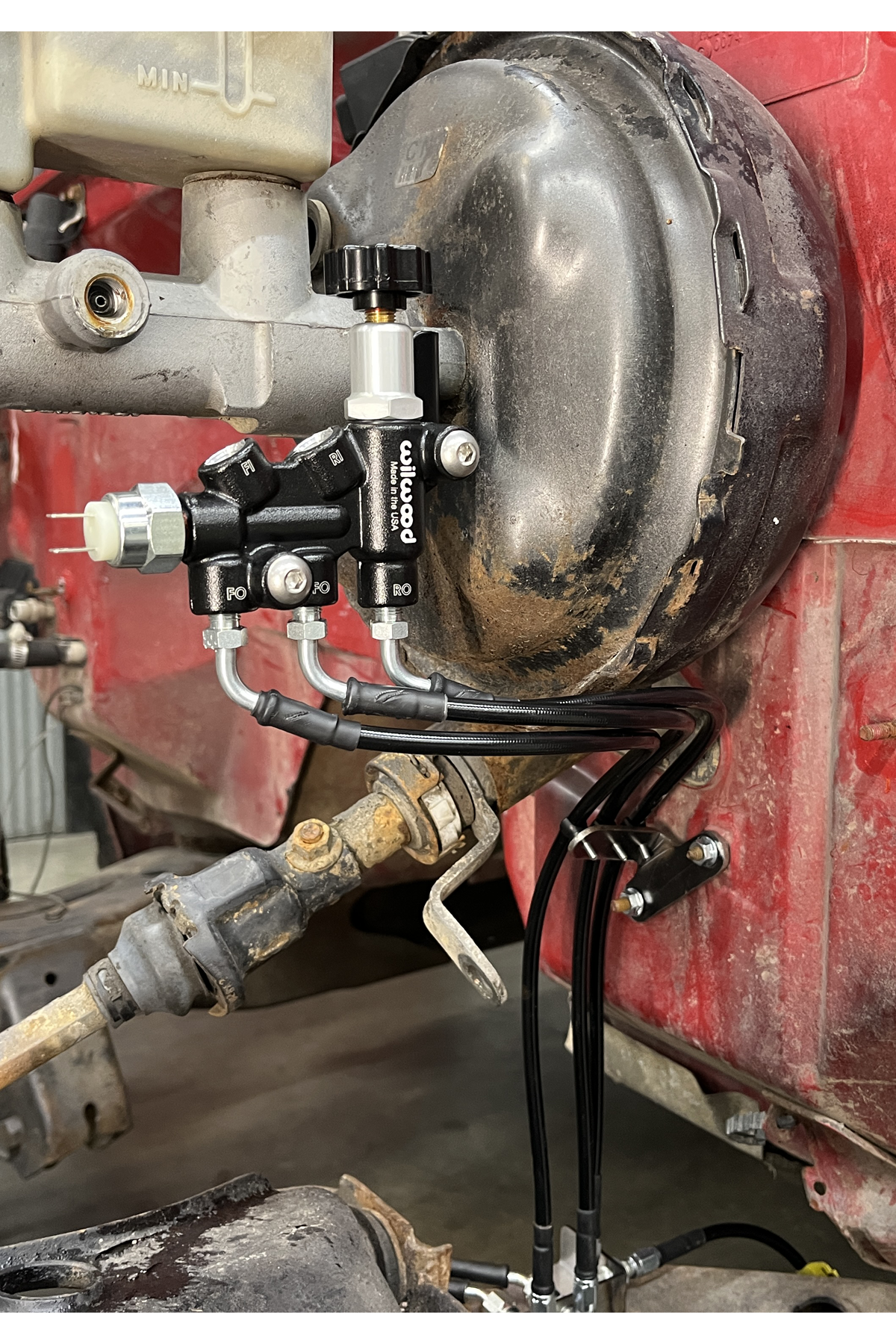

IMPORTANT: This kit is designed to work with Wilwood's combination proportioning valve. The prop valve can be used with the Stock (OEM) or Wilwood master cylinder. If using with the stock master cylinder you will need to fabricate the short lines from the master to the prop valve. This kit can be used on your stock OBS frame only.
The brake lines in this kit follow the similar factory routing, offers exceptional performance, and installs easily and quickly!
The lines in this kit feature a PTFE inner lining that is compatible with all fluids and is wrapped in a braided stainless steel cover to resist abrasion and corrosion. Then they are covered with a special PVC coated material for maximum durability against debris and abrasion. All Pro Series hoses use stainless steel hose ends for many years of corrosion resistance and durability. The hoses are all DOT approved and are all crimped by the manufacturer.

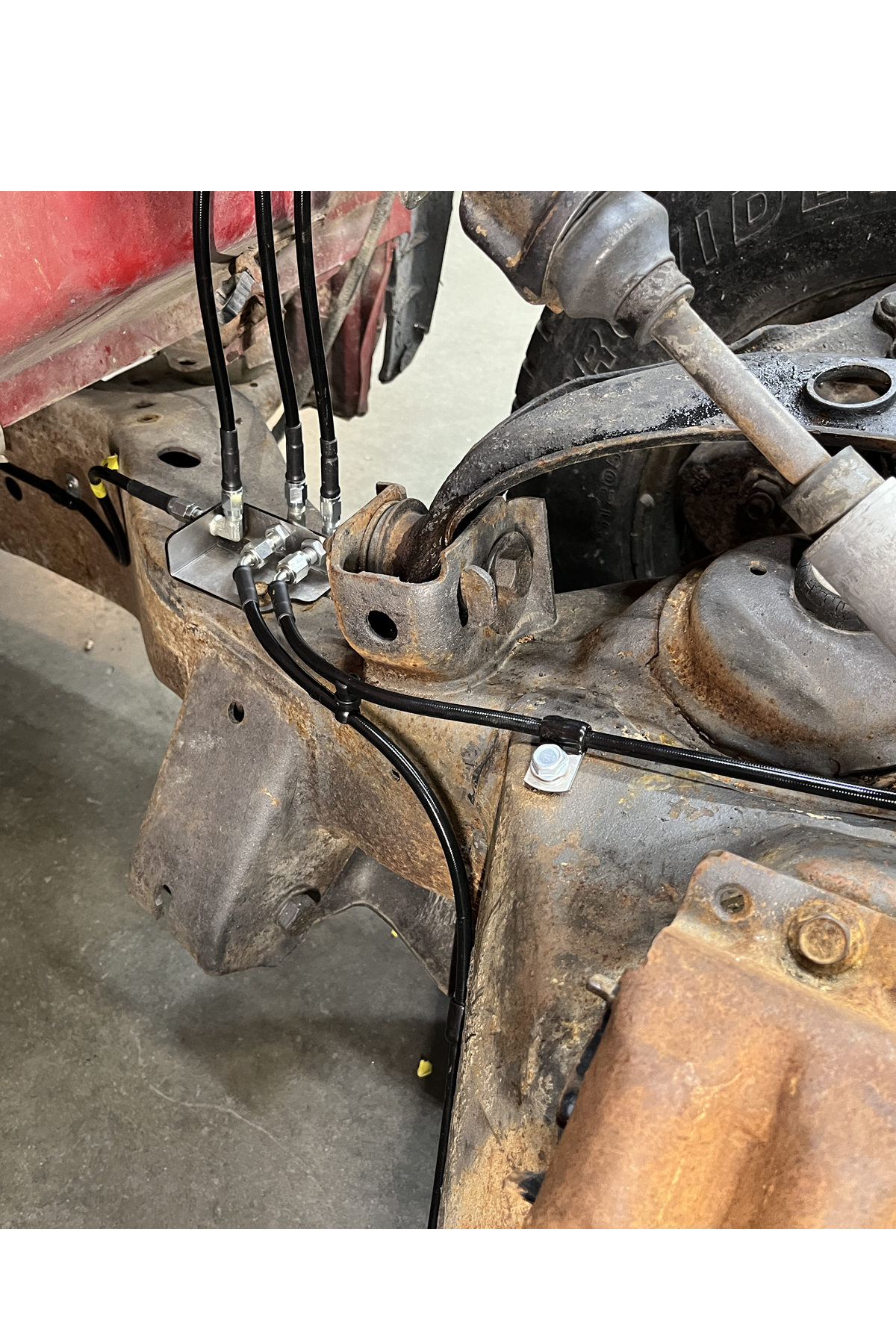

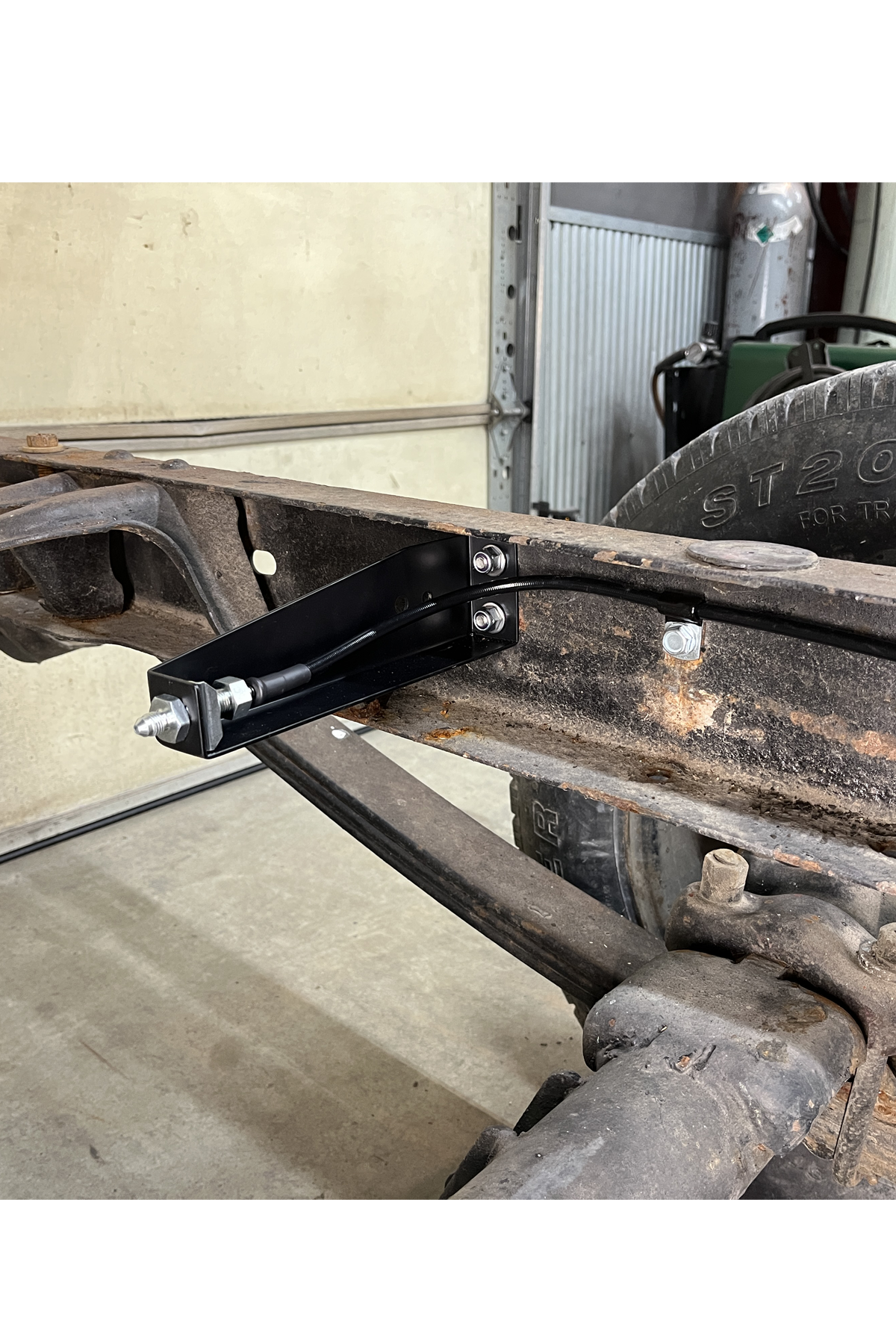

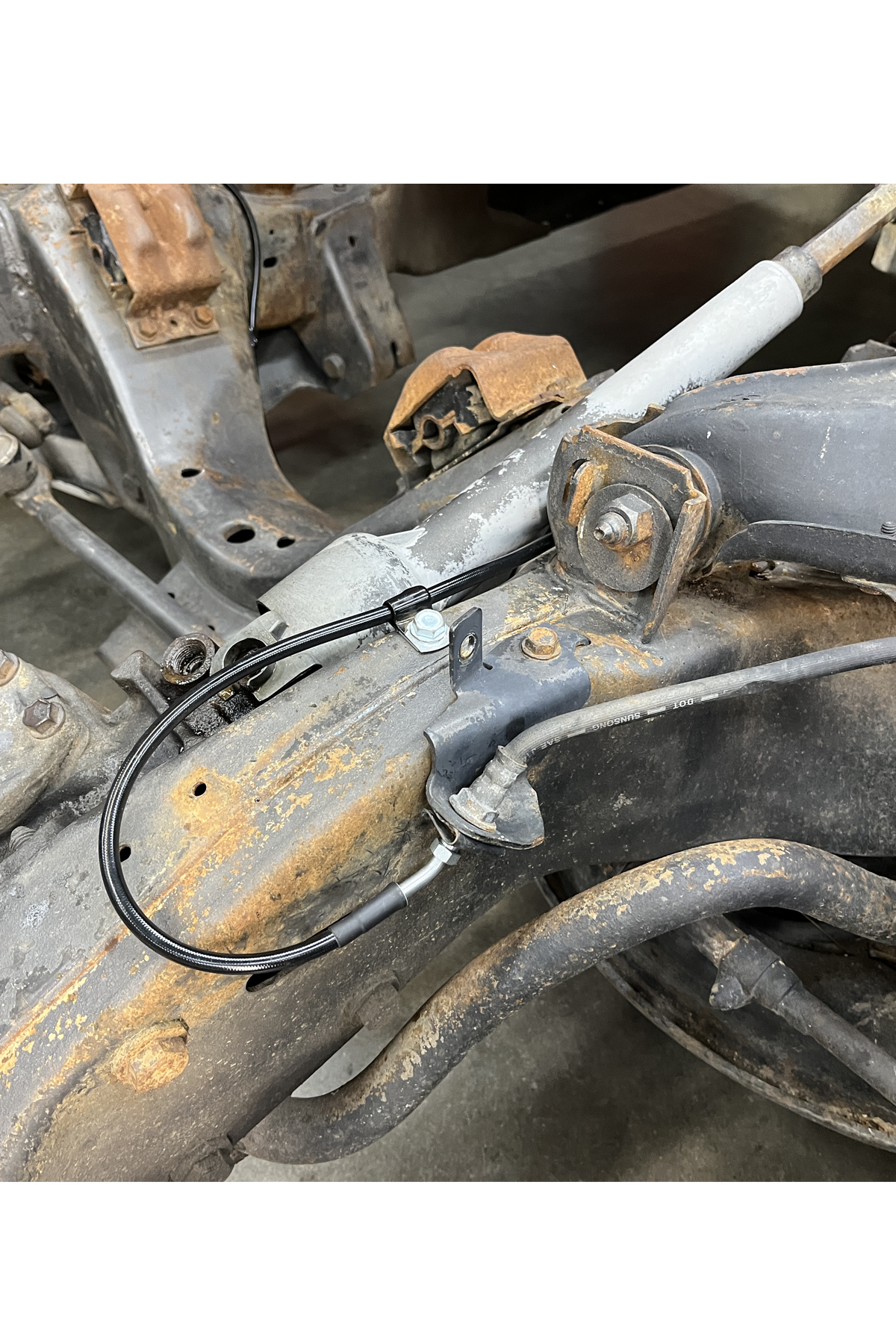

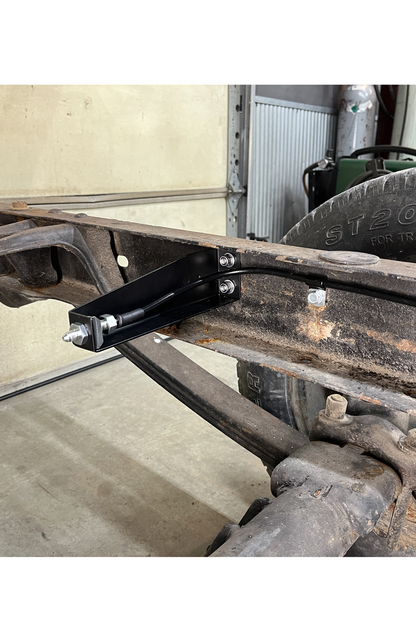

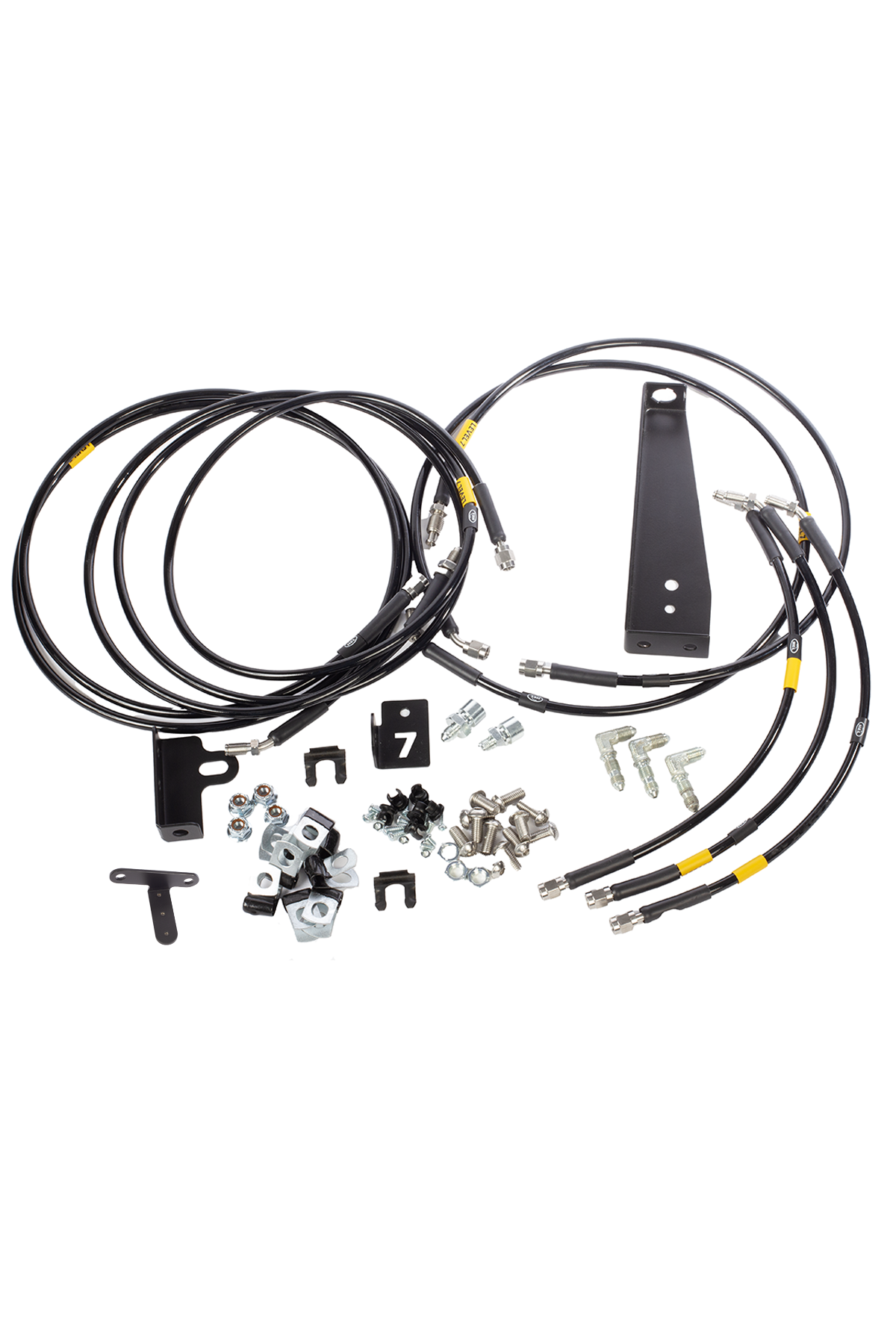

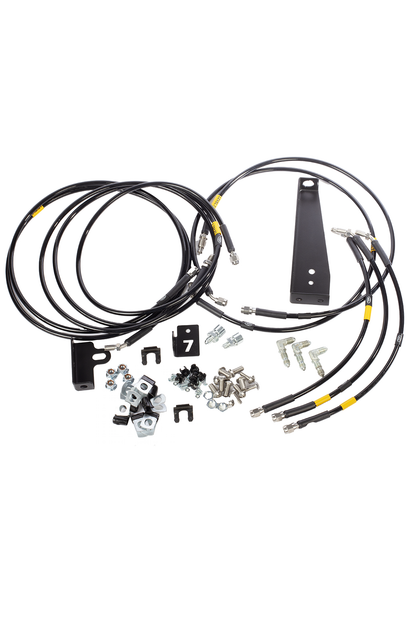

Included in the kit are the hoses from the proportioning valve to the chassis, chassis bulkhead fittings and brackets, hoses for the front left and right that terminate at the factory front brake caliper hoses, and a rear hose in two parts that terminates on the factory frame hose bracket. Brake calipers hoses and rear axle plumbing are not included.
- DOT approved hose kit to plumb your factory 1988-98 OBS chassis.
- Installs easily and quickly!
- Can use stock front and rear brake hoses.
- PTFE Hoses, Stainless reinforced, and silicone coated.
- Black in color
- Includes new whip hose bracket
_____________________________________________________________________________
Installation Instructions:
